   Инфракрасный датчик движения
    Главная -> Статьи -> Проекты на Arduino -> Инфракрасный датчик движения

baseball hitting lessons

<< Назад в раздел   Распечатать Дата добавления: 2011-10-25 | Просмотров: 12160

Ниже представлена схема датчика движения с использованием Arduino. В качестве датчика, мы будем использовать PIR-сенсор (Passive Infrared sensor), т.е. пассивный ИК датчик. PIR-сенсоры основаны на методике измерения инфракрасного излучения от обьектов.

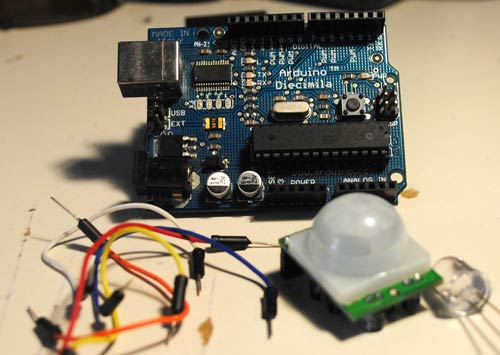

Необходимые компоненты для создания датчика движения

Итак, для создания ИК датчика движения нам понадобятся следующие компоненты:
контроллер Arduino
макетная плата
1 светодиод
PIR сенсор фирмы Parallax
провода

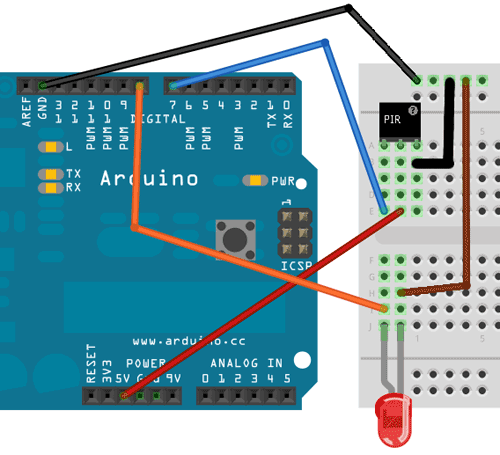

Схема подключения датчика движения (PIR) к контроллеру Arduino простейшая:

Схема подключения

PIR-сенсор имеет 3 вывода: плюс, минус и выход. К 7-му выводу Arduino подключаем выход PIR-сенсора. Также, присоединим светодиод к выводу 8 Arduino и GND.

Исходный код программы взят с официального сайта arduino.cc:

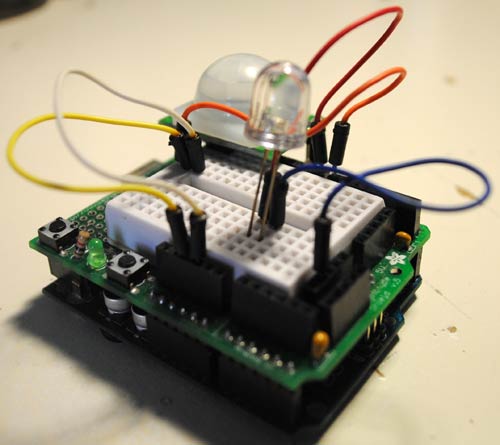

Датчик движения на макетной плате

/*
 * //////////////////////////////////////////////////
 * //making sense of the Parallax PIR sensor's output
 * //////////////////////////////////////////////////
 *
 * Switches a LED according to the state of the sensors output pin.
 * Determines the beginning and end of continuous motion sequences.
 *
 * @author: Kristian Gohlke / krigoo (_) gmail (_) com / http://krx.at
 * @date:   3. September 2006
 *
 * kr1 (cleft) 2006
 * released under a creative commons "Attribution-NonCommercial-ShareAlike 2.0" license
 * http://creativecommons.org/licenses/by-nc-sa/2.0/de/
 *
 *
 * The Parallax PIR Sensor is an easy to use digital infrared motion sensor module.
 * (http://www.parallax.com/detail.asp?product_id=555-28027)
 *
 * The sensor's output pin goes to HIGH if motion is present.
 * However, even if motion is present it goes to LOW from time to time,
 * which might give the impression no motion is present.
 * This program deals with this issue by ignoring LOW-phases shorter than a given time,
 * assuming continuous motion is present during these phases.
 *
 */

/////////////////////////////
//VARS
//Время калибровки датчика (10-60 сек. по даташиту)
int calibrationTime = 30;

//the time when the sensor outputs a low impulse
long unsigned int lowIn;

//the amount of milliseconds the sensor has to be low
//before we assume all motion has stopped
long unsigned int pause = 5000;

boolean lockLow = true;
boolean takeLowTime;

int pirPin = 7;    //вывод подключения PIR сенсора
int ledPin = 8;


/////////////////////////////
//SETUP
void setup(){
  Serial.begin(9600);
  pinMode(pirPin, INPUT);
  pinMode(ledPin, OUTPUT);
  digitalWrite(pirPin, LOW);

  //дадим датчику время на калибровку
  Serial.print("calibrating sensor ");
    for(int i = 0; i < calibrationTime; i++){
      Serial.print(".");
      delay(1000);
      }
    Serial.println(" done");
    Serial.println("SENSOR ACTIVE");
    delay(50);
  }

////////////////////////////
//LOOP
void loop(){

     if(digitalRead(pirPin) == HIGH){
       digitalWrite(ledPin, HIGH);   //the led visualizes the sensors output pin state
       if(lockLow){
         //makes sure we wait for a transition to LOW before any further output is made:
         lockLow = false;
         Serial.println("---");
         Serial.print("motion detected at ");
         Serial.print(millis()/1000);
         Serial.println(" sec");
         delay(50);
         }
         takeLowTime = true;
       }

     if(digitalRead(pirPin) == LOW){
       digitalWrite(ledPin, LOW);  //the led visualizes the sensors output pin state

       if(takeLowTime){
        lowIn = millis();          //save the time of the transition from high to LOW
        takeLowTime = false;       //make sure this is only done at the start of a LOW phase
        }
       //if the sensor is low for more than the given pause,
       //we assume that no more motion is going to happen
       if(!lockLow && millis() - lowIn > pause){
           //makes sure this block of code is only executed again after
           //a new motion sequence has been detected
           lockLow = true;
           Serial.print("motion ended at ");      //output
           Serial.print((millis() - pause)/1000);
           Serial.println(" sec");
           delay(50);
           }
       }
  }

В скетче Arduino видно, что датчик проводит самодиагностику, а затем переходит в режим отслеживания движений. Когда движение обнаружено, то загорается светодиод. По Serial Monitor вы можете отслеживать сколько по времени длилось движение.

Данный проект можно использовать как основу для обнаружения движения в охранных сигнализациях, для включения освещения, в робототехнике и т.п.

Оригинал статьи на английском языке (перевод Колтыков А.В.)
